Hematology Analyzer Manufacturer,Supplier and Exporter in India
Product Code : EL-CL-10361
Last updated: 7 October 2026

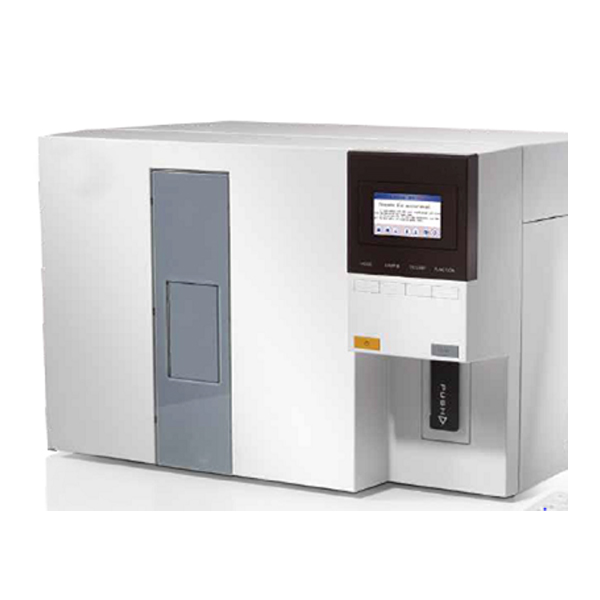

The Hematology Analyzer is a bench-top automated haematology analyser that runs a complete blood count with a 5-part white cell differential on whole blood, at 50 to 100 samples per hour. It is listed in the Clinical Laboratory range alongside the matching sample tubes, racks and centrifuges a routine haematology bench needs.
Specifications
| Specification | Value |
|---|---|
| Scope | Complete blood count (CBC) with 5-part differential, for routine haematology |
| Sample type | Whole blood |
| Throughput | 50 to 100 samples per hour |
| Platform | Bench-top, open, automated system |
| Method | Flow cytometry, colorimetry, electrical impedance |
| Data management | Built in; stores at least 100 patient records including quality control and calibrators |
| Reporting | External printer; graphs, histograms and scatter graphs, with sample ID, date and time |
| Quality control | Flags abnormal results; auto-calibration |
| Connectivity | USB to external PC; can interface to a Laboratory Information System |
| Casing | Corrosion-proof material |
| Power supply | 220 V / 50 Hz with voltage surge protection |
| Operating temperature | 15 C to 35 C; tolerates high humidity |
Parameters reported
| Group | Parameters |
|---|---|
| Red cell | RBC, haemoglobin (HGB), haematocrit (HCT), mean cell volume (MCV), mean cell haemoglobin (MCH), red cell distribution (RDW-SD, RDW-CV) |
| Platelet | Platelets (PLT), platelet distribution (PDW-SD, PDW-CV), mean platelet volume (MPV) |
| White cell | WBC with 5-part differential: neutrophils, lymphocytes, monocytes, eosinophils, basophils |
Used for
Routine haematology in hospital and diagnostic laboratories, and in teaching laboratories working on an open automated platform. Samples are drawn into the EDTA Vacuum Tube or the smaller Blood Collection Tube, held in a Rack Tube, and cross-checked where needed on the Haematocrit Centrifuge or by manual count on the Neubauer counting chamber. The 15 C to 35 C operating range and corrosion-proof casing are the specifications that matter for sites without climate control.
Packing and documentation
Supplied in institutional quantities against a purchase order. School Instrument India states on its ordering pages that consignments carry a tracking ID and courier details until delivery, and that installation assistance, training manuals and technical support are provided with medical devices supplied to institutions. Mixed laboratory lots are quoted through the Tenders page.
Related items
- Clinical Chemistry Analyser — 60 to 100 tests per hour on serum, plasma and urine.
- ELISA Reader, 8 channel — 380 to 900 nm, absorbance 0.001 to 4.000 OD.
- ELISA washer, 8 channel — matching 8-channel strip manifold.
- Bilirubin Meter — bench-top, with integrated printer.
- Haematocrit Centrifuge — fixed speed approximately 13000 rpm.
- Centrifuge — bench top, adjustable to 6000 rpm.
- Counter Cell — manual differential counter to 100 cells.
- ESR Rack 5 positions — tubes graduated 0 to 200 mm.
- Vacuum Tube Needle — 38 mm x 0.7 mm.
- Rotator — mixes collection tubes to prevent clotting.
- Clinical Laboratory — the full consumables, bench equipment and analyser range.
- Medical Devices — hospital furniture, sterilizers and monitoring equipment.
Questions buyers ask
How many samples per hour does the hematology analyzer run?
50 to 100, on whole blood, on a bench-top open automated platform.
Which parameters does it report?
The full CBC panel in the table above, including the 5-part WBC differential and both platelet and red cell distribution widths.
Can results be exported to a laboratory system?
Yes. It connects to an external PC over USB and can interface to a Laboratory Information System, and prints through an external printer with sample ID, date and time on each report.
What power supply and operating conditions does it need?
220 V at 50 Hz with voltage surge protection, operating between 15 C and 35 C, and it is specified to tolerate high humidity.
Which consumables are ordered with it?
EDTA vacuum tubes or K2EDTA collection tubes, tube racks, and capillary tubes where a haematocrit centrifuge is used alongside. The complete list is on the Clinical Laboratory page.
How is a hematology analyzer quoted?
Against a written requirement rather than a list figure. Send the throughput, sample type and quantity through the contact page and a quotation covering packing and despatch is returned against that specification.
Request a quotation
Send the quantity and any site requirement such as power supply or operating temperature through the contact page. Buyers can request the latest copies of ISO certificates from School Instrument India.
