ELISA Reader, 8 channel Manufacturer,Supplier and Exporter in India
Product Code : EL-CL-10358
Last updated: 7 October 2026

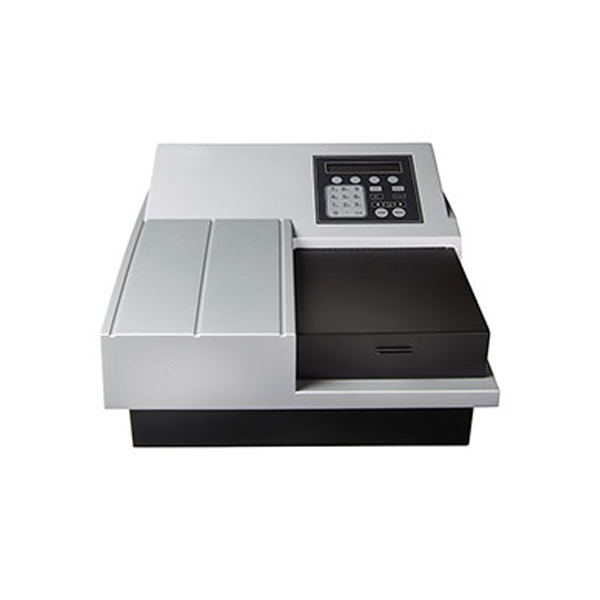

The ELISA Reader, 8 channel is a bench-top, open, automatic micro-plate reader for enzyme-linked immunosorbent assays, covering an extended wavelength range of 380 to 900 nm and an absorbance range of 0.001 to 4.000 OD. It is listed in the Clinical Laboratory range with its matching washer and the plates and consumables an immunoassay bench runs on.
Specifications
| Specification | Value |
|---|---|
| Type | Micro-plate reader for ELISA |
| Platform | Bench-top, open, automatic system |
| Wavelength range | 380 to 900 nm (extended) |
| Absorbance range | 0.001 to 4.000 OD |
| Assay modes | Endpoint and kinetic |
| Detectors | Eight measuring plus one reference photo-detector |
| Panel capacity | Up to 8-panel assays in a single run |
| Measuring modes | Single, dual and multi wavelength endpoint |
| Shaking | Built in; low, medium, high and variable speeds |
| Assay protocols | 50 user definable |
| Result storage | Storage and recall of the last 10 micro-plate results |
| Data reduction | On-board qualitative and quantitative software (English); minimum 15 formulas per assay for cut-off, transformation and validation |
| Standards | Retained standards for assays spanning more than one micro plate |
| Plate compatibility | All common 96-well microplates: flat, round, U or V-shaped bottom |
| Plate mapping | Automatic and manual |
| Reporting | Plate matrix format, table format, or both; user definable sample ID |
| Power supply | 220 V / 50 Hz with voltage surge protection |
Used for
Immunoassay work in hospital and diagnostic laboratories, and in teaching laboratories running an open programmable reader. Plates are washed between steps on the matching ELISA washer, 8 channel, reagents are dispensed from a Reagent Reservoir with 8 and 12 channel pipettes, and samples are prepared with pipette tips and the Vortex Test Tube shaker. The 8-plus-1 detector arrangement and the 50 stored protocols are the specifications a tender schedule usually names.
Packing and documentation
Supplied in institutional quantities against a purchase order. School Instrument India states on its ordering pages that consignments carry a tracking ID and courier details until delivery, and that installation assistance, training manuals and technical support are provided with medical devices supplied to institutions. Mixed laboratory lots are quoted through the Tenders page.
Related items
- ELISA washer, 8 channel — bench-top open automatic strip and plate washer with 8-channel manifold.
- Hematology Analyzer — complete blood count with 5-part differential.
- Clinical Chemistry Analyser — 60 to 100 tests per hour on serum, plasma and urine.
- Bilirubin Meter — bench-top, fully automatic, integrated printer.
- Micro Well Plate for PCR Cycles — fits standard thermo-cyclers and real-time PCR systems.
- PCR Microplate 96 U-well — U-bottom wells, raised edges for sealing.
- Reagent Reservoir — approximately 60 ml, 5 ml graduations, takes 8 and 12 channel pipettes.
- Thermomixer — 300 to 3000 rpm, mixing orbit 3 mm.
- Thermoblock — dry block for 5 ml tubes, 10 C to 40 C.
- Screw Cap Tube — polypropylene micro tube, 2.0 ml, box of 1000.
- Clinical Laboratory — the full consumables, bench equipment and analyser range.
- Glassware & Plasticware — plates, reservoirs and vessels.
Questions buyers ask
What is the wavelength range of this ELISA reader?
380 to 900 nm, described as an extended range, with an absorbance range of 0.001 to 4.000 OD.
How many channels does it read?
Eight measuring photo-detectors plus one reference detector, allowing up to 8-panel assays in a single run.
Which microplates does it take?
All common 96-well microplates, in flat, round, U or V-shaped bottom formats, with automatic and manual plate mapping.
Does it store assay protocols?
Yes, 50 user definable protocols, with on-board data reduction software carrying a minimum of 15 formulas per assay for cut-off, transformation and validation, and recall of the last 10 micro-plate results.
Is a matching washer available?
Yes. The ELISA washer, 8 channel is listed separately with an 8-channel strip manifold and wash bottles.
How is an ELISA reader quoted?
Against a written requirement rather than a list figure. Send the assay types, plate format and quantity through the contact page and a quotation covering packing and despatch is returned against that specification.
Request a quotation
Send the quantity, assay requirement and any site constraint such as power supply through the contact page. Buyers can request the latest copies of ISO certificates from School Instrument India.
