Heat Transfer Kit Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11650
The

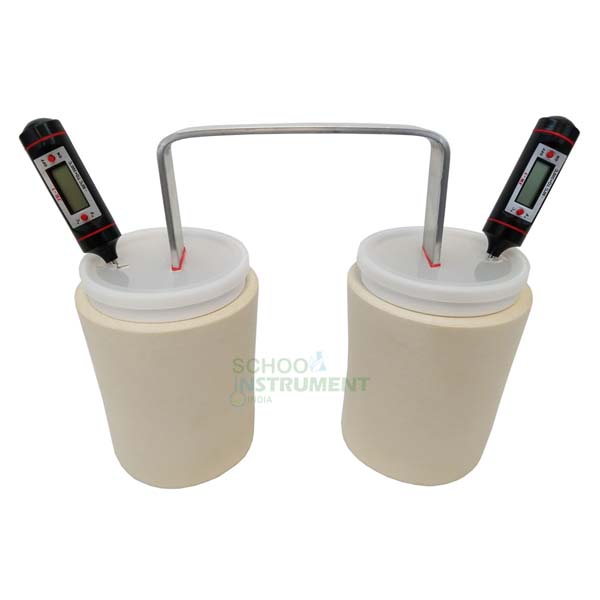

Heat Transfer Kit is a precision diagnostic assembly engineered for the
empirical study of thermal conduction between high and low enthalpy reservoirs.
Designed for University and Secondary physics laboratories, it facilitates the
calculation of heat flux and thermal conductivity constant (k) using ASTM-compliant digital monitoring.
The system is optimized for evidentiary data acquisition in Thermodynamics and
Material Science modules.
Technical
Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade (Calorimeters) |
High-Density Expanded
Polystyrene (Insulation Grade) |
|
Heat Bridge Material |
U-shaped Aluminum Alloy (High
Thermal Conductivity) |
|
Bridge Cross-Sectional Area |
122 mm² |
|
Effective Bridge Length |
~200 mm (dependent on
reservoir volume) |
|
Measurement Range |
-50°C to 150°C (Digital
Dual-Range) |
|
Thermometric Precision |
0.1°C |
|
Volumetric Capacity |
200 ml per reservoir |
Key Pedagogical Outcomes
· Calibrated
122 mm² Aluminum Heat Bridge: Enables
students to evaluate the rate of thermal energy
transfer across a known cross-section, supporting Fourier's Law verification.
· Digital
Dual-Range Thermometers (0.1°C precision):
Facilitates the analysis of temperature-time
gradients with high resolution, reducing experimental uncertainty in enthalpy
calculations.
· High-Insulation
Foam Reservoirs: Allows students to calculate heat
exchange with minimal parasitic loss to the ambient environment, ensuring data
integrity during conduction trials.
· Dual-Reservoir
Configuration: Supports the synthesis of
closed-system thermodynamic models, allowing students to observe and plot the
approach toward thermal equilibrium.
International
Logistics & Compliance
Our export-grade Heat Transfer Kits are secured in
high-impact, moisture-barrier internal packaging within ISPM-15 compliant
seaworthy crating to ensure the structural integrity of the aluminum bridge and
electronic precision of the thermometers during multimodal transit.
Documentation for international procurement officers includes the
Manufacturer’s Authorization Form (MAF), batch-specific IQ/OQ/PQ Certification,
and technical manuals in English. The apparatus features a tropicalized design,
with electronic components and insulated housing tested for operational
stability in environments reaching 45°C and 90% non-condensing humidity.
