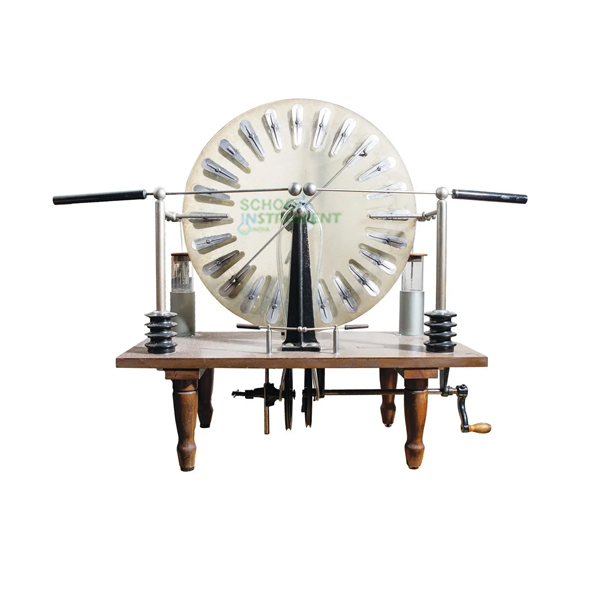

Wimshurst Generator Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11582
The Wimshurst Generator is a high-performance electrostatic induction apparatus engineered for the generation and storage of high-voltage DC potential through counter-rotating dielectric disks. Optimized for University and Secondary laboratory demonstrations, this School Instrument facilitates the analysis of corona discharge, spark gap dielectric breakdown, and capacitive storage. It complies with institutional safety and durability standards for high-potential physics instruction.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Charge Generation Method |
Electrostatic Induction
(Counter-Rotating Disks) |
|
Dielectric Material |
High-Transparency Clear
Acrylic (PMMA) |
|
Capacitance System |
Dual Integrated Insulated
Cylindrical Leyden Jars |
|
Discharge Interface |
Adjustable Chrome-Plated
Electrodes with Insulated Handles |
|
Dimensions |
431.8 mm x 381.0 mm x 241.3
mm (17" H x 15" W x 9.5" D) |
|
Chassis Construction |
High-Density Impact-Resistant
Polymer Platform |
Key Pedagogical Outcomes
· Counter-Rotating
Acrylic Disks with Foil Sectors: Analyzing Charge Separation. Facilitates the "Analysis" of how
mechanical work is converted into electrostatic potential through induction
rather than friction, supporting Electromagnetism.
· Integrated
Cylindrical Capacitors: Evaluating Energy Density. Enables students to "Evaluate" the
storage capacity and discharge characteristics of Leyden jars, visualizing the
relationship between charge (Q), voltage (V), and capacitance (C).
· Adjustable
Spark Gap Electrodes: Applying Dielectric Strength Theory. Allows learners to "Apply"
calculations regarding the dielectric breakdown of air (approx. 30kV/cm) by measuring maximum spark length.
· High-Conductivity Foil Strips and Brushes: Understanding Charge Transfer. Supports the "Understanding" of corona effect and the role of localized field intensification at sharp points and conductive edges.
International Logistics & Compliance
To satisfy the
rigorous requirements of international procurement and global educational
tenders, all units are dispatched in export-grade seaworthy crating (ISPM-15
compliant) to protect the integrity of the acrylic disks and capacitive insulation
during transit. Documentation provided includes a Manufacturer’s Authorization
Form (MAF), complete IQ/OQ/PQ Certification, and technical User Manuals in
English. The apparatus features a tropicalized design; all conductive surfaces
are treated to resist oxidation, and the polymer components are batch-tested
for operational stability in environments up to 45°C and 90% non-condensing
humidity.
