Spring Scales, Clear Plastic Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11387

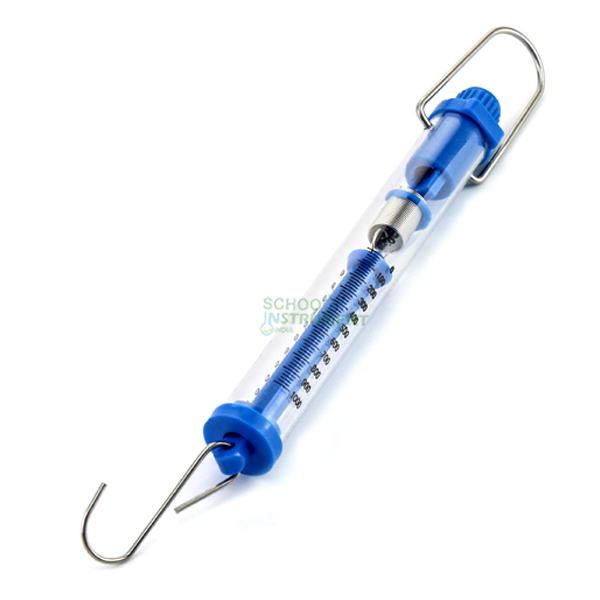

The Clear Tubular Dynamometer is a calibrated laboratory
instrument engineered for the empirical measurement of weight and force (F=mg). Designed for Secondary and Vocational (TVET)
physics modules, this apparatus features a clear acrylic chassis for internal
mechanism visualization. It complies with ASTM precision
standards for linear elasticity and supports dual-scale (Gram/Newton) data
acquisition for metrology and kinematics.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
High-Transparency Acrylic
Housing; Stainless Steel Spring |
|
Mechanical Interface |
Top Steel Support Loop; Large
Steel "S" Load Hook |
|
Calibration Interface |
Integrated Top-Mounted
Zero-Adjustment Nut |
|
Dimensions |
9-1/2" Length (approx.
241mm); 1" Diameter (approx. 25.4mm) |
|
Measurement Scale |
Dual-Graduation: Grams (Mass)
/ Newton’s (Force) |
|
ISO Compliance Code |
ISO 8124 (Safety Standards);
ASTM Calibration Traceable |
|
HS Code |
8423.81 (Weighing machinery;
maximum capacity not exceeding 30 kg) |
Key Pedagogical Outcomes
o Clear Acrylic Tubular Chassis: Allows students to observe internal spring
extension in real-time, facilitating the empirical verification of Hooke's Law (F=kx) by visualizing the
direct relationship between load and displacement.
o Integrated Zero-Adjustment Calibration Nut: Provides hands-on training in metrological
precision, requiring students to neutralize systematic errors before data
acquisition, supporting Metrology.
o Color-Coded Capacity Identification: Streamlines laboratory management and reduces
experimental error by ensuring students select the correct spring constant (k) for specific load ranges.
o Dual Gram and Newton Scale: Enables the direct comparison of mass vs.
gravitational force, aiding students in calculating the acceleration due to
gravity.
o Heavy-Duty Steel "S" Hook: Ensures secure attachment for diverse load
types (slotted masses, friction blocks, or pulleys), supporting complex vector
analysis and static equilibrium demonstrations.
International Logistics & Compliance
For international
procurement, all units are prepared with export-grade seaworthy crating.
Full documentation is provided, including the Manufacturer’s Authorization
Form (MAF), IQ/OQ/PQ Certification protocols, and Technical Manuals
in English. The tropicalized design is batch-tested
for operational stability in high-corrosion and high-humidity environments (up
to 45°C/90% Humidity), ensuring the acrylic remains
shatter-resistant and the internal steel spring retains its elastic limit over
long-duration maritime transit and tropical storage.
