Electrical Submersible Pump Manufacturer,Supplier and Exporter in India
Product Code : EL-WS-10455
Last updated: 8 October 2026

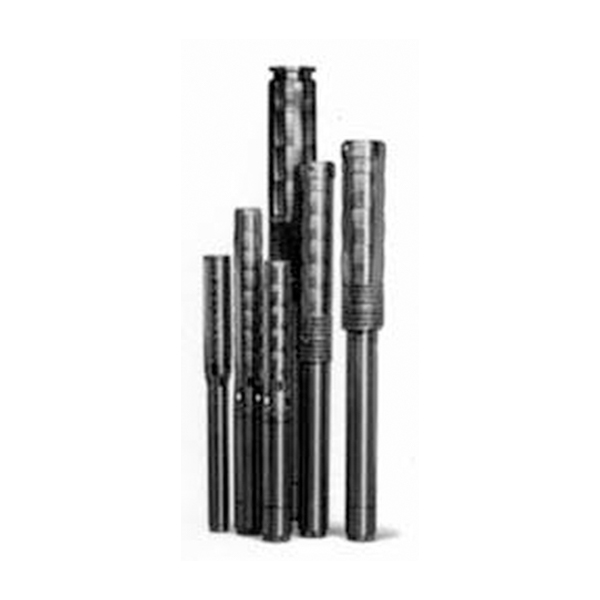

The Electrical Submersible Pump is a complete borehole pump for non-aggressive water without solid particles, directly coupled to a 3-phase submersible motor of maximum 7.5 kW on a 380 to 400 V, 50 Hz supply, with dry-running protection and water-lubricated bearings. It is listed in the Water and Sanitation range.
Specifications
| Specification | Value |
|---|---|
| Type | Complete electrical submersible borehole pump |
| Duty | Non-aggressive water without solid particles |
| Motor rating | Maximum 7.5 kW |
| Motor type | 3-phase submersible, directly coupled |
| Power supply | 380 V / 400 V, 50 Hz, 3-phase |
| Stator winding | Embedded, hermetically enclosed in stainless steel |
| Dry-running protection | Built-in protection device, including level relay electrodes |
| Bearings | Water lubricated |
| Non-return valve | Top non-return valve fitted |
| Inlet | Bottom inlet strainer |
| Priming | Priming screw fitted |
| Supplied with | Motor cable |
| Material suitability | All materials suitable for use with drinking water |
Used for
Drawing water from a borehole or deep well, where the pump sits submerged and pushes to the surface rather than drawing by suction. Two details in the specification decide service life in that duty: the dry-running protection with level relay electrodes stops the unit if the water level drops below the inlet, which is the usual way a borehole pump is destroyed, and the stator winding is hermetically sealed in stainless steel against the water it runs in. Because the bearings are water lubricated there is no oil to change or to contaminate the supply. Output fills a Water Tank Collapsible or a Water Tank (bladder), is metered through a Multi or Single Jet Water Meter, and the rising main is protected by a Cast Iron Check Valve. Where there is no power supply, the Open Top Hand Pump covers the same abstraction by hand.
Packing and documentation
Supplied in institutional quantities against a purchase order, complete with motor cable. School Instrument India states on its ordering pages that consignments carry a tracking ID and courier details until delivery, and that installation assistance, training manuals and technical support are provided with equipment supplied to institutions. Mixed water and sanitation lots are quoted through the Tenders page.
Related items
- Open Top Hand Pump — hand abstraction for 65 mm ND below-ground riser pipes.
- Centrifugal Pump Diesel Driven — 50 m3 per hour at 20 m TMH, trolley or skid mounted.
- Diesel Driven Centrifugal Pump — 20 m3 per hour at 20 m TMH, 5 m maximum suction lift.
- Centrifugal Pump — 10 m3 per hour at 20 m TMH, 5 m maximum suction lift.
- Cast Iron Check Valve — 100 mm, swing type, 10 bar, prevents back flow.
- Multi or Single Jet Water Meter — 13 mm bore, Qn 1.5 m3 per hour, 10 bar working pressure.
- Water Tank Collapsible — 10 CBM static storage, polyester with PVC coating.
- Water Tank (bladder) — 4 m by 2.2 m, 1100 g/m2 fabric, for truck transport.
- Lay-Flat Rapid Fitting Hose — 75 mm, 25 m length, Guillemin couplings both ends.
- Brass Gate Valve — for starting and stopping flow on distribution lines.
- Emergency Water Testing Kit — chlorine 0.1 to 3.0 mg/l and pH 6.8 to 8.2.
- Water and Sanitation — the full pumps, tanks, valves, fittings and taps range.
Questions buyers ask
What is the motor rating of this submersible pump?
Maximum 7.5 kW, 3-phase, on a 380 V to 400 V 50 Hz supply.
What does the dry-running protection do?
A built-in protection device with level relay electrodes stops the pump if the water level falls below the inlet, which is the common cause of borehole pump failure.
Can it handle water with sand or solids?
No. It is specified for non-aggressive water without solid particles.
How is the motor protected from the water?
The embedded stator winding is hermetically enclosed in stainless steel, and the bearings are water lubricated rather than oil filled.
What is supplied with the pump?
The complete pump with motor cable, priming screw, top non-return valve and bottom inlet strainer.
What if the site has no electricity?
The Open Top Hand Pump covers the same abstraction by hand, for 65 mm ND riser pipes.
Request a quotation
Send the borehole depth, required head and available power supply through the contact page. Buyers can request the latest copies of ISO certificates from School Instrument India.
