Water Tank Collapsible Manufacturer,Supplier and Exporter in India
Product Code : EL-WS-10460
Last updated: 8 October 2026

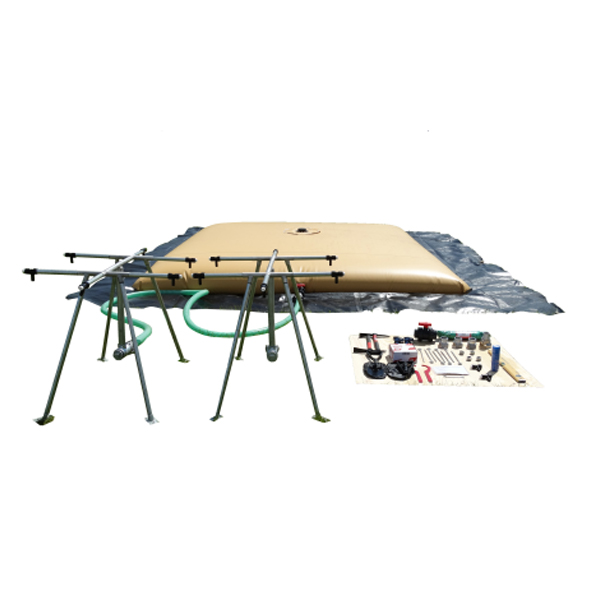

The Water Tank Collapsible holds 10 CBM, or 10,000 litres, in a PVC-coated polyester tank rated for chlorinated drinking water storage, UV proof and thermally stable from -30 C to +70 C. It is listed in the Water and Sanitation range as the static storage option, where the Water Tank (bladder) is the version built for transport on trucks.
Specifications
| Specification | Value |
|---|---|
| Type | Collapsible water tank, static storage |
| Capacity | 10 CBM, 10,000 litres |
| Construction | Polyester coated with PVC |
| Base fabric | Bi-composite polyester or equivalent, 250 g/m2 |
| Outer coating | Abrasion and UV-resistant PVC, 480 g/m2 |
| Inner coating | Black polyurethane, PVC or equivalent, 200 g/m2 |
| Threads per cm | 16 x 16 |
| Adhesion | Greater than 100 N per 5 cm |
| Assembly | Heat welding or high frequency welding |
| Temperature resistance | -30 C to +70 C |
| UV and biological resistance | UV proof, mildew and rot resistant |
| Chlorine tolerance | 0.5 mg/litre at 35 C water temperature, without alteration of the stored water |
| Peak chlorine tolerance | 5 mg/litre during the cleaning process |
| Flame retardant | None |
| Intended contents | Chlorinated drinking water |
Used for
Static bulk storage at a distribution point, a camp or an institution, where 10,000 litres has to be held on site and the tank is filled and drawn down in place rather than moved. The two chlorine figures are the ones that matter in service: the inner coating holds 0.5 mg/litre continuously at 35 C without altering the stored water, and tolerates a 5 mg/litre peak while the tank is being cleaned, so routine shock-dosing does not degrade the liner. Water is drawn in by an Electrical Submersible Pump or an Open Top Hand Pump, metered through a Multi or Single Jet Water Meter, and distributed into a Collapsible Water Container. Residual chlorine is checked with the Emergency Water Testing Kit.
Packing and documentation
Supplied in institutional quantities against a purchase order, folded for despatch. School Instrument India states on its ordering pages that consignments carry a tracking ID and courier details until delivery. Mixed water and sanitation lots are quoted through the Tenders page.
Related items
- Water Tank (bladder) — 4 m by 2.2 m, 1100 g/m2 fabric, built for truck transport.
- Collapsible Water Container — 10 litres, PVC-coated polyester, UV resistant.
- Electrical Submersible Pump — borehole pump, motor up to 7.5 kW, 380 to 400 V 3-phase.
- Open Top Hand Pump — for 65 mm ND below-ground riser pipes.
- Centrifugal Pump Diesel Driven — 50 m3 per hour at 20 m TMH, trolley or skid mounted.
- Multi or Single Jet Water Meter — 13 mm bore, Qn 1.5 m3 per hour, 10 bar working pressure.
- Cast Iron Check Valve — 100 mm, swing type, 10 bar, prevents back flow.
- Brass Gate Valve — for starting and stopping flow on distribution lines.
- Lay-Flat Rapid Fitting Hose — 75 mm, 25 m length, Guillemin couplings both ends.
- Emergency Water Testing Kit — chlorine 0.1 to 3.0 mg/l and pH 6.8 to 8.2.
- Water Filter, Candle Type — four silver-impregnated ceramic elements, up to 80 litres per day.
- Water and Sanitation — the full pumps, tanks, valves, fittings and taps range.
Questions buyers ask
What is the capacity of this collapsible tank?
10 CBM, which is 10,000 litres.
How much chlorine will the liner tolerate?
0.5 mg per litre continuously at a water temperature of 35 C, and a peak of 5 mg per litre during cleaning, without alteration of the stored water.
What temperature range is it rated for?
-30 C to +70 C, and the fabric is UV proof as well as mildew and rot resistant.
How is the tank constructed?
Polyester base fabric at 250 g/m2 with a 480 g/m2 UV-resistant PVC outer coating and a 200 g/m2 black polyurethane or PVC inner coating, assembled by heat or high frequency welding.
Is it flame retardant?
No. The specification states flame retardant: none.
How does it differ from the bladder tank?
This tank is for static storage on site. The Water Tank (bladder) uses heavier 1100 g/m2 fabric and is designed for carrying water on trucks.
Request a quotation
Send the quantity and the site conditions, including expected chlorine dosing, through the contact page. Buyers can request the latest copies of ISO certificates from School Instrument India.
