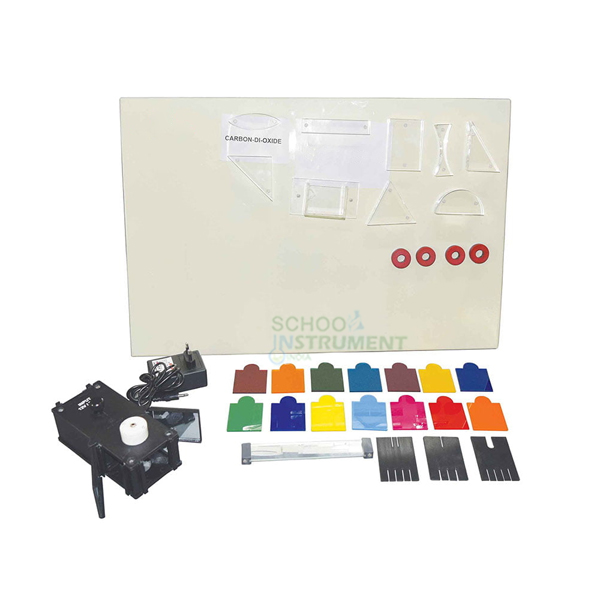

Whiteboard Optics Set Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11420
Engineered for
large-scale classroom demonstrations, this magnetic-backed optics system
facilitates the quantitative analysis of ray refraction, reflection, and color
synthesis. Optimized for Secondary and Vocational curricula, it adheres to ASTM
safety and spectral standards. The system utilizes a fan-cooled 12V/20W halogen
light source and acrylic geometric components to demonstrate optical laws on a
dual-orientation steel whiteboard.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Optical-Grade Acrylic
(Lenses/Prisms); Steel/Polymer (Whiteboard) |
|
Light Source |
Double-ended 12V/20W Halogen
Lamp with Integrated Cooling Fan |
|
Whiteboard Dimensions |
23" x 15.5" Usable
Surface; 24" x 17.25" x 1" Overall |
|
Optical Component Mass |
3 lb., 7 oz. (Total Set) |
|
Input Power |
12V Wall-mount AC Adapter |
Key Pedagogical Outcomes
·
Magnetic-Backed
Geometric Acrylics: Facilitates the "Analysis" of refraction indices and focal
lengths in a vertical plane, enabling clear visualization of beam convergence
and divergence for large student groups.
·
Double-Ended
Fan-Cooled Light Box: Supports the "Application" of Snell's Law and reflection
theories simultaneously, utilizing cylindrical lenses and slit diaphragms to
produce discrete, high-contrast rays.
·
Integrated
Color Filter and Paddle Set: Enables the "Evaluation"
of additive and subtractive color mixing, allowing students to verify spectral
absorption and transmission theories.
·
Hollow
Acrylic Rectangular Cell:
Supports the "Execution" of fluid-based refraction
experiments, permitting the calculation of refractive indices for water and
other transparent liquids.
·
Adjustable
Concave/Convex Mirrors:
Connects hardware to "Synthesis" of real vs.
virtual image formation, providing immediate feedback on focal point shifts
during curvature adjustment.
International Logistics & Compliance
This system is
configured for international B2B procurement and ministerial-level tenders.
Packaging consists of a high-density storage box with precision-molded inserts
to secure optical components, enclosed in export-grade seaworthy crating
(ISPM-15 compliant). Documentation includes the Manufacturer’s Authorization
Form (MAF), IQ/OQ/PQ Certification, and a comprehensive Experiment Manual in
English. The halogen light source and fan assembly are tropicalized and tested
for operation in laboratory environments up to 45°C and 90% humidity, with
electrical components adapted for international AC frequency standards.
