Thermal Conductivity Bars Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11605

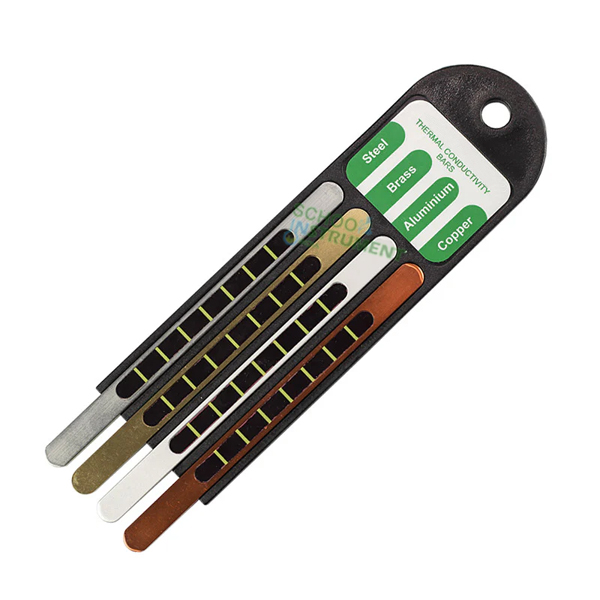

The Thermal
Conductivity Comparison Apparatus is a precision laboratory tool engineered for
the empirical verification of heat transfer rates across divergent metallic
substrates. Optimized for Secondary and Vocational physics curricula, it
utilizes integrated liquid crystal thermometry to track gradients in real-time.
This School Instrument complies with ASTM laboratory safety standards and
provides evidentiary data for calculating thermal conductivity constants.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Aluminum, Copper, Brass, and
Steel (Identically Sized) |
|
Thermometry Type |
Liquid Crystal Display (LCD)
Indicators per Bar |
|
Dimensions (Overall) |
Height: 20cm; Width: 5.5cm |
|
Bar Dimensions (Individual) |
Length: 13.5cm; Width: 0.9cm;
Thickness: 0.5cm |
|
Temperature Range |
35°C to 42°C (Graduated at
1°C Increments) |
|
Weight |
145g |
Key Pedagogical Outcomes
· Identically-Sized
Comparative Metal Bars: Analyzing Material Properties. Facilitates the "Analysis" of the Fourrier Law
of Heat Conduction by isolating the material constant while maintaining
constant geometry and temperature gradients.
· Integrated
Liquid Crystal Thermometers: Evaluating Heat Propagation. Enables students to "Evaluate" and measure the
velocity of thermal energy transfer through visual time-sequencing.
· 35°C
- 42°C Thermal Display: Applying Data Acquisition Skills. Supports the "Application" of real-time data collection
as students record the duration required for each substrate to reach a specific
isothermal state.
· Parallel
Mounted Plastic Support: Understanding Thermal Equilibrium. Allows learners to "Understand" the behavior
of thermal flux when multiple conductors are subjected to a uniform heat
source.
International Logistics & Compliance
To satisfy the requirements of international procurement
officers and global educational tenders, this apparatus is secured in
export-grade seaworthy crating (ISPM-15 compliant). Documentation includes the
Manufacturer’s Authorization Form (MAF), complete IQ/OQ/PQ Certification, and
technical User Manuals in English. The apparatus features a tropicalized
design; metallic components are batch-tested for oxidation resistance and the
LCD indicators are calibrated for operational integrity in environments up to
45°C and 90% non-condensing humidity.
