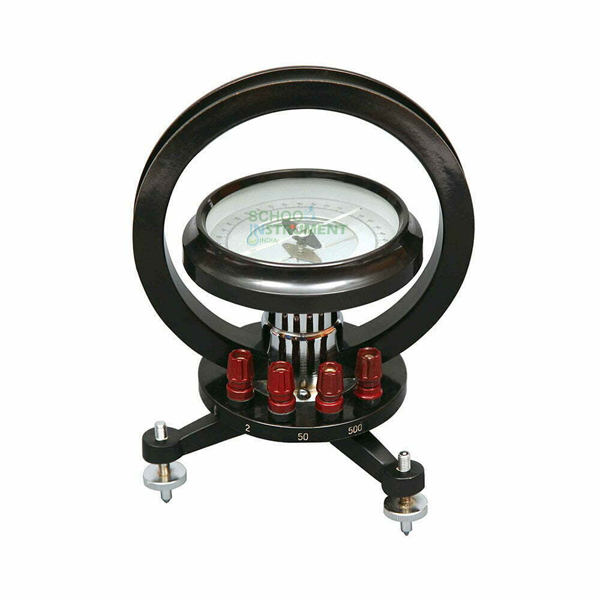

Tangent Galvanometer Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11441
Engineered for the
evidentiary measurement of Earth's horizontal magnetic component, this Tangent
Galvanometer facilitates the quantitative analysis of current-induced magnetic
fields. Optimized for University and Secondary physics curricula, it supports ASTM-aligned
laboratory standards. The multi-tap coil configuration allows for variable
turn-ratio analysis, enabling students to verify the Tangent Law and Ampere’s
Law through precise angular deflection.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Impact-Resistant Polymer Ring
and Base; Insulated Copper Windings |
|
Ring Dimensions |
6" Diameter (Calibrated
Center Point) |
|
Coil Configuration |
Dual-winding: 5 and 10 turns
(Selectable for 5, 10, or 15 turns) |
|
Interface |
3 x Heavy-Duty Binding Posts
(Color-coded) |
|
Integrated Instrumentation |
Precision Magnetic Compass
with Degree Scale |
|
Package Dimensions |
10" x 7" x 3" |
|
Shipping Mass |
1 Lb. |
Key Pedagogical Outcomes
·
Multi-Tap
Insulated Coil System (5/10/15 Turns): Facilitates the "Analysis"
of the relationship between turns and magnetic field strength, allowing
students to observe linear proportionality in Electrodynamics.
·
6"
Diameter Calibrated Ring:
Supports the "Application" of the Biot-Savart Law by
providing a fixed radius for calculating the magnetic field at the center of a circular
loop.
·
Integrated
Center-Point Compass: Enables the "Evaluation" of the Tangent Law of Magnetism,
providing a direct evidentiary method for measuring unknown currents via
angular deflection.
·
Non-Ferrous
Pivot and Base Construction: Supports "Execution"
of trials without hardware-induced magnetic interference, ensuring high data
integrity during terrestrial flux density mapping.
·
Comprehensive
Activity Guide: Connects hardware
usage to "Synthesis" of geomagnetic theory and vector
addition, providing structured, repeatable laboratory protocols.
International Logistics & Compliance
This instrumentation
is configured for high-volume B2B distribution and ministerial-level
educational tenders. Packaging consists of high-density protective inserts
within export-grade seaworthy crating (ISPM-15 compliant) to prevent structural
ring deformation or compass demagnetization during maritime transit.
Documentation provided includes the Manufacturer’s Authorization Form (MAF),
internal IQ/OQ/PQ certification, and Technical User Manuals in English. The
unit is fully tropicalized and tested for operational integrity in laboratory
environments up to 45°C and 90% humidity, ensuring that copper insulation and
polymer stability remain consistent across diverse geographic regions.
