Squatting Plate Plastic w/o Pan Manufacturer,Supplier and Exporter in India
Product Code : EL-WS-10444
Written by Palak Mall, Senior Content Writer · reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory supply · updated 15 October 2026

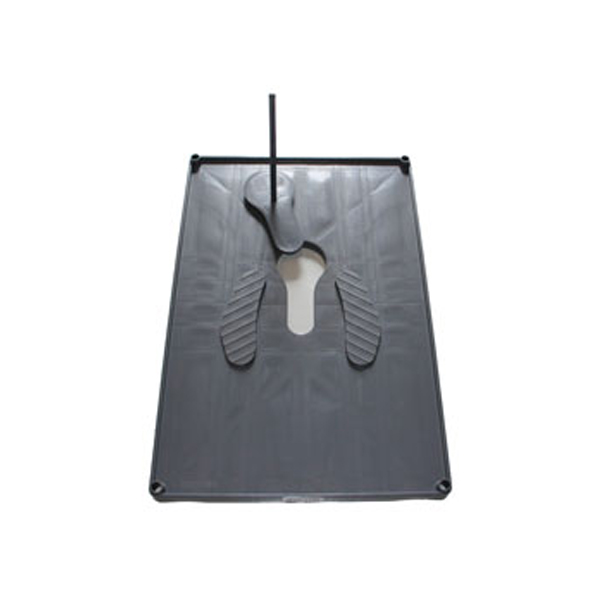

The Squatting Plate Plastic w/o Pan is a self-supporting direct-drop plate with footrests, moulded in LDPE with an HDPE keyhole cover, specified to support 150 kg at the centre with at least 100 mm of firm support under each extreme end. The plate is listed among the sanitation items in Water and Sanitation.
What is specified
| Detail | Figure listed |
|---|---|
| Type | Self-supporting, direct drop, with footrests |
| Plate material | Moulded LDPE |
| Cover material | Moulded HDPE keyhole cover |
| Centre load | 150 kg at the centre |
| Bearing | At least 100 mm of firm support under the two extreme ends, on ground or beams |
| Upper surface | Slight slope towards the drop hole to aid cleaning |
| Cover fixing | Preferably attached and hinged |
| Anchoring | Holes at four corners, four pegs or anchors provided |
| Underside | Inserts to fasten either a Pan and Goose neck or a Pan and P trap |
The load figure only holds if the bearing is right
The 150 kg centre load is conditional: each extreme end must sit on at least 100 mm of firm support, ground or beams. A plate bridging a wider opening than its bearing allows is outside specification however little the user weighs.
Questions buyers ask
What load does it take?
150 kg at the centre, provided each extreme end has at least 100 mm of firm support.
Does it come with a pan?
No. The underside has inserts for either a Pan and Goose neck or a Pan and P Trap, which are listed separately.
Request a quotation
Send quantities, and state whether a pan and trap are needed, through the contact page.
