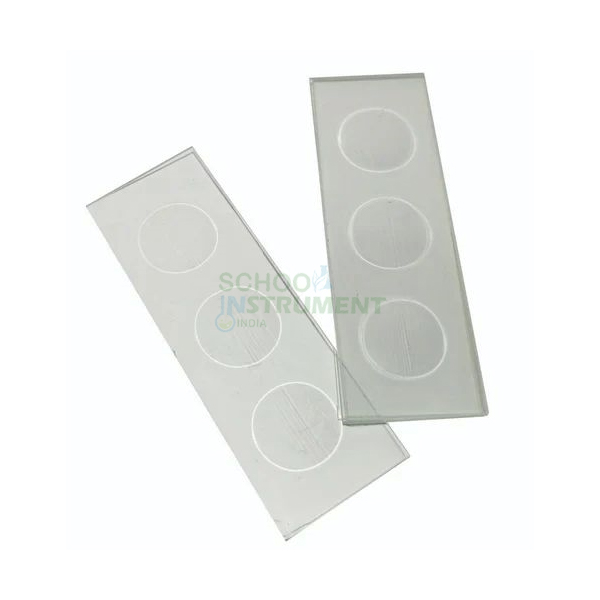

Concavity Slides, Glass Manufacturer,Supplier and Exporter in India
Product Code : SCL-LE-11145
These 1.3mm thick,
pre-cleaned glass concavity slides are engineered for the observation of living
microorganisms and hanging drop culture techniques in University and Clinical
laboratory settings. Calibrated with 16mm diameter spherical depressions (0.8mm
depth), they ensure optimal focal planes for motile specimens. Compliant with
ISO 8037/1, these instruments are optimized for advanced Secondary and
Vocational (TVET) life science curricula.
Technical
Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Optical-Grade Quality Sheet Glass (Low-Iron) |
|
Dimensions |
75mm x 25mm (Standard ISO 8037/1 Geometry) |
|
Slide Thickness |
1.3mm (Standardized for Focal Consistency) |
|
Concavity Geometry |
Spherical; ~16mm Diameter x 0.8mm Depth |
|
Available Configurations |
Single, Double, or Triple Concavity Formats |
|
Edge Finish |
Precision Ground (Safety Beveled) |
|
Surface Treatment |
Pre-cleaned; Hydrophilic Surface Tension Optimized |
|
Packaging Configuration |
12 Units per inner box |
Key Pedagogical
Outcomes
· 0.8mm Calibrated Spherical Concavity: Enables students to "Apply"
hanging drop techniques for observing bacterial motility without specimen
compression or dehydration.
· Optical-Grade Sheet Glass Substrate: Facilitates high-resolution
"Analysis" of unicellular organism morphology by providing maximum
light transmission and minimal refractive distortion.
· Multi-Concavity (Double/Triple) Format: Allows learners to "Evaluate"
side-by-side comparative assays within a single field of view, supporting
standardized experimental controls.
· Precision Ground Edges: Supports the "Development" of professional
laboratory motor skills by providing a snag-free, impact-resistant handling
surface during high-frequency rotations.
International
Logistics & Compliance
To meet the stringent
requirements of international B2B procurement, these units are secured in
moisture-vapor barrier inner packaging and secondary export-grade seaworthy
crating (ISPM-15 compliant). Standard documentation includes the Manufacturer’s
Authorization Form (MAF), IQ/OQ/PQ Certification records, and technical
datasheets in English. The slides utilize a tropicalized packaging protocol
involving interleaved protective layers to prevent surface etching or glass
adhesion (fogging) in transit environments exceeding 45°C and 90% humidity.
