Rectangular Refraction Cell Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11585

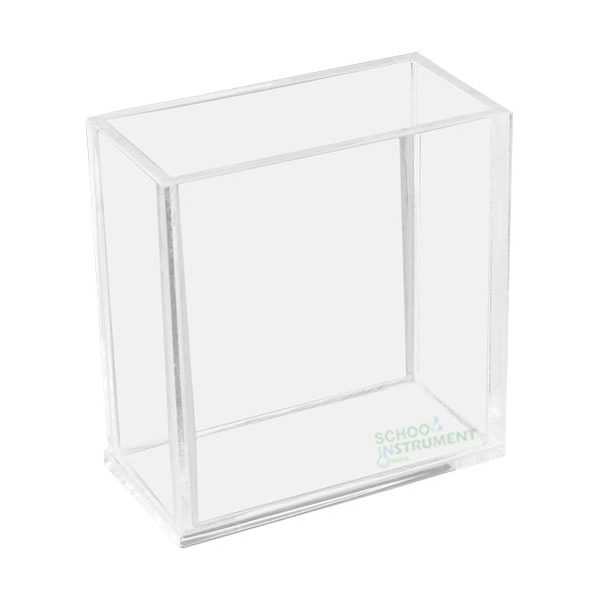

The Rectangular
Refraction Cell is a precision-engineered optical containment vessel designed
for the empirical measurement of liquid refractive indices and the
visualization of total internal reflection. Engineered for Secondary and
University-level optics modules, this School Instrument maintains uniform wall
thickness to ensure distortion-free light path analysis. It complies with ASTM
laboratory hardware standards for high-clarity dielectric media investigations.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Optical-grade Transparent
Acrylic (PMMA) |
|
Chassis Geometry |
Rectangular with
High-Precision Parallel Wall Alignment |
|
Optical Performance |
Uniform Wall Thickness for
Distortion-Free Beam Propagation |
|
Primary Utility |
Measurement of Refractive
Index (n) and Critical Angle |
Key Pedagogical Outcomes
· Uniform
Acrylic Wall Thickness: Analyzing Snell’s Law. Eliminates geometric aberration, allowing
students to "Analyze" the relationship between incident and refracted
angles with high mathematical precision.
· High-Clarity
PMMA Construction: Evaluating Total Internal Reflection. Facilitates the visualization of ray paths at
the liquid-to-air interface, enabling students to "Evaluate" the
critical angle of diverse fluid media.
· Open-Top
Rectangular Design: Applying Experimental Controls. Supports the "Application" of
controlled variable testing by allowing for the introduction of various aqueous
solutions to determine material-specific refractive indices.
· Parallel
Longitudinal Faces: Understanding Lateral Displacement. Enables the study of beam shifting in
medium-filled vessels, helping learners "Understand" the refractive
properties of parallel boundaries.
International Logistics & Compliance
To meet the rigorous
requirements of international procurement and global educational tenders, all
Rectangular Refraction Cells are dispatched in export-grade seaworthy crating
(ISPM-15 compliant) with anti-scratch protective layers. Documentation includes
a Manufacturer’s Authorization Form (MAF), complete IQ/OQ/PQ Certification, and
technical User Manuals in English. The units feature a tropicalized design,
using UV-stabilized acrylic tested for optical clarity and structural integrity
in environments up to 45°C and 90% non-condensing humidity.
