Product Code : SCL-M-11390

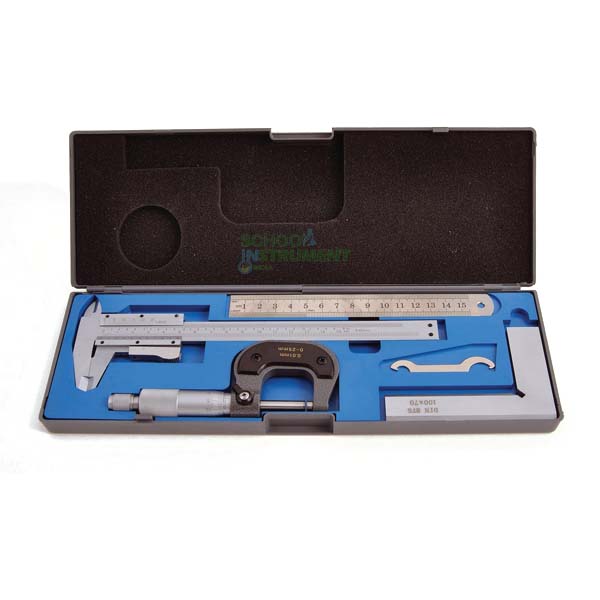

The Precision Metrology Instrument Suite is a calibrated
four-piece diagnostic set engineered for high-accuracy dimensional analysis in University, Vocational (TVET), and Engineering
curricula. Facilitating the empirical verification of mechanical tolerances and
geometric orthodoxy, this suite adheres to DIN 862 and DIN 863 metrology standards. It is designed for
evidentiary data acquisition in metallurgy, machining, and structural physics.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Hardened Tool Steel;
High-Carbon Polished Steel |
|
Micrometer Range/Resolution |
0 – 25mm range / 0.01mm
increments |
|
Vernier Caliper
Range/Resolution |
150mm range / 0.02mm
increments |
|
Knife Edge Square Dimensions |
90° Orthogonality / 100mm x
70mm |
|
Steel Ruler Specification |
15cm length / 0.5mm
graduation |
|
Storage Solution |
Impact-Resistant Ruggedized
Polymer Case |
Key Pedagogical Outcomes
·
Hardened
Steel Micrometer (0.01mm resolution): Enables students to execute precision measurement of external
diameters and thicknesses, facilitating the calculation of thermal expansion
coefficients in Material Science.
·
150mm
Vernier Caliper (0.02mm resolution): Supports internal, external, and depth measurement protocols,
allowing for the verification of volume and density in fluid mechanics modules.
·
Knife
Edge 90° Square: Allows for the
empirical assessment of perpendicularity and surface flatness, essential for
verifying structural integrity in Mechanical Engineering.
·
0.5mm
Graduated Steel Ruler:
Develops foundational competency in linear estimation and parallax error
mitigation during rapid prototyping and assembly exercises.
·
Integrated
Metrology Manual: Standardizes
institutional standard operating procedures (SOPs) for instrument handling,
maintenance, and calibration verification.
International Logistics & Compliance
To meet the
requirements of international procurement officers, the Precision Metrology Instrument Suite is prepared for
transit via export-grade seaworthy crating (ISPM-15 compliant).
Documentation includes a comprehensive Manufacturer’s Authorization
Form (MAF), IQ/OQ/PQ Certification protocols, and English-language
Technical Manuals. The apparatus features a tropicalized design,
utilizing anti-corrosive finishes and vapor-phase inhibitor (VPI) packaging
tested for operation and storage in environments reaching 45°C and 90% non-condensing humidity, ensuring
calibration stability remains within nominal tolerances during maritime
transit.
