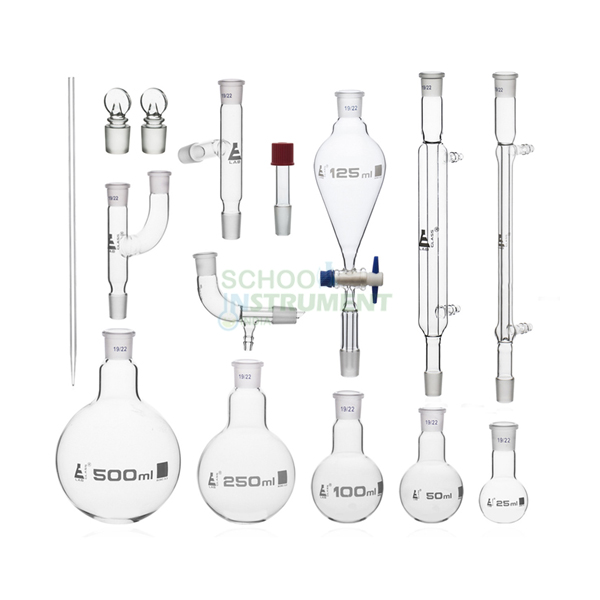

Organic Chemistry Glassware Kit, 9 pieces Manufacturer,Supplier and Exporter in India
Product Code : SCL-LE-11282
This 9-piece modular
glassware assembly is engineered for small-scale organic synthesis and
fractional distillation procedures up to 30g. Designed for university-level and
vocational technical (TVET) curricula, the set features precision-ground 14/23
joints for leak-proof, grease-free performance. All components meet ASTM E438
Type 1, Class A standards for thermal expansion and chemical resistance.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Borosilicate Glass 3.3 (ASTM
E438 compliant) |
|
Joint Specification |
14/23 Standard Taper
Precision Ground Joints |
|
Volumetric Capacity |
Optimized for small-scale
procedures (up to 30g/50ml) |
|
Thermal Tolerance |
Low-expansion glass;
resistant to high-temperature gradients |
|
Included Components |
Dropping Funnel (Rotoflo),
Liebig Condenser, Still Head, Boiling Flask |
|
Storage Solution |
High-density protective foam insert within rigid transport casing |
Key Pedagogical Outcomes
·
Precision
14/23 Ground Joints: Facilitates the
assembly of air-tight, multi-stage reaction vessels, supporting advanced
"Application" of reflux and distillation techniques.
·
Liebig Condenser with Standardized Fittings: Allows students to quantify phase change
efficiency and solvent recovery rates, essential for "Analysis" in
organic purification modules.
·
Dropping
Funnel with Rotoflo Stopcock: Enables precise, drop-wise reagent addition for kinetic
control, supporting "Evaluation" of exothermic reaction parameters.
·
Air
Leak / Steam Inlet Tube:
Provides hardware for vacuum or steam distillation, allowing students to
"Synthesize" complex purification pathways for heat-sensitive
compounds.
International Logistics & Compliance
For international
procurement, this kit is available in export-grade seaworthy crating (ISPM-15
compliant) to ensure structural integrity during maritime or air transit. Each
shipment includes a Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ
certification protocols upon request, and comprehensive technical manuals in
English. The borosilicate 3.3 composition is a tropicalized design, tested for
thermal stability and chemical inertness in environments up to 45°C and 90%
humidity.
