Free Fall Apparatus Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11574

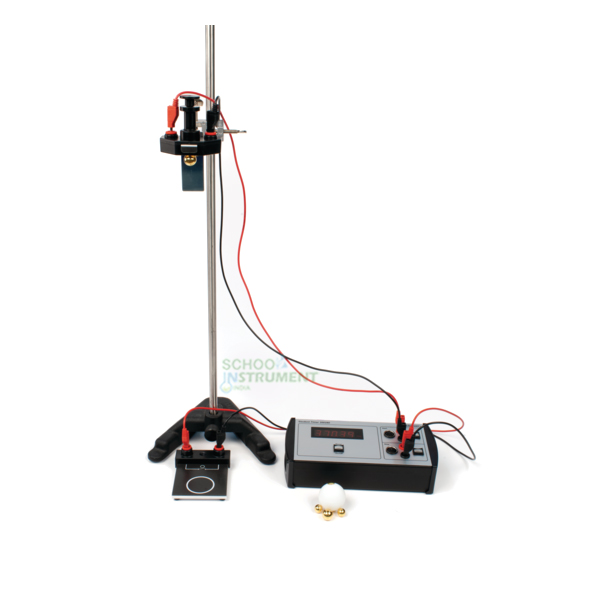

The Free Fall
Apparatus is a high-precision vertical timing system designed for the empirical
determination of gravitational acceleration (g) through
time-of-flight measurement. Engineered for University and Secondary physics
laboratories, it features a 150cm fall path and electromagnetic release to
minimize initial velocity variance. The system is calibrated for integration
with digital chronometers to meet ASTM-level accuracy in kinematic research.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Effective Fall Length |
150 cm (Vertical displacement
path) |
|
Release Mechanism |
Low-latency Electromagnetic
Ball Release |
|
Data Acquisition |
Dual Photogate Sensors with
integrated long-reach cable harness |
|
Material Grade |
Anodized Aluminum /
Structural Steel components |
|
Standard Components |
2x Steel Spheres (various
diameters), Plumb Line, Kinetic Energy Catcher |
|
Required Interface |
DTPHG1 Digital Timer (or
compatible TTL logic chronometer) |
|
Shipping Dimensions |
1905 mm x 152 mm x 178 mm
(75" x 6" x 7") |
|
Shipping Weight |
2.27 kg (5 lbs.) |
Key Pedagogical Outcomes
· Electromagnetic
Ball Release: Analyzing Systematic Error. Minimizes human interference and mechanical friction during
launch, allowing students to "Analyze" the impact of v0 (initial velocity) on kinematic equations.
· Dual
Photogate Array: Evaluating Instantaneous Velocity. Enables high-resolution time interval
recording to "Evaluate" the relationship between displacement and
time (s = 1/ gt2).
· 150cm
Vertical Pillar with Plumb Line: Applying Geometric Alignment. Requires students to "Apply"
spatial calibration techniques to ensure a perfectly vertical descent, reducing
parallax and cosine errors in data collection.
· Variable
Mass Spheres: Understanding Mass Independence. Facilitates experiments that demonstrate the
mass-independent nature of acceleration in a gravitational field, supporting
"Understanding" of Newtonian mechanics.
International Logistics & Compliance
To satisfy the
requirements of international procurement officers and global educational
tenders, all units are dispatched in export-grade seaworthy crating (ISPM-15
compliant) to prevent structural warping during maritime or air transit.
Documentation includes a Manufacturer’s Authorization Form (MAF), complete
IQ/OQ/PQ Certification, and technical User Manuals in English. The apparatus features
a tropicalized design, with moisture-resistant electronic coatings tested for
operation in environments up to 45°C and 90% humidity, ensuring durability in
diverse climatic zones.
