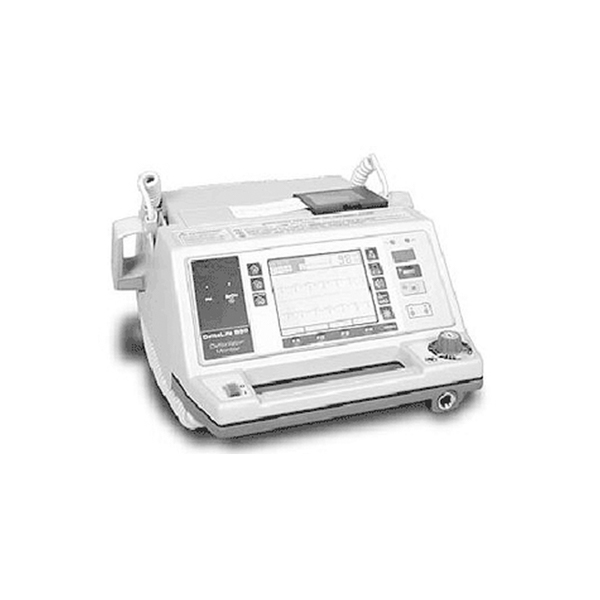

External Defibrillator for Adult and Paediatric Patients Manufacturer,Supplier and Exporter in India
Product Code : EL-MD-10578
Defibrillator features:
Manual and synchronized defibrillation
Bi-phasic energy waveform
Adjustable energy output, by steps
Energy output accuracy ± 15 %
Patient resistance 30 – 175 Ohm
Adult and paediatric energy settings
charge time to maximum energy < 10 s
ECG monitor:
detection through pads or dedicated ECG cable
ECG waveform and analysis, selectable visualization modes
3-leads ECG cable
ECG gain 2.5, 5, 10 and 20 mm/mV
protection against defibrillation discharges
adjustable ECG print modes and settings
Printer:
built-in 3-channel thermal printer
print of ECG curves and analysis, events, settings and alarms
paper speed 25 mm/s
paper width 58 or 72 mm
Internal safety discharge feature
Compatibility with additional modes and monitoring
Internal storage for ECG, events and parameters
Data/USB communication interface
Integrated carry handle
Splash and shock resistant
Power requirements 110 – 220 V / 50 – 60 Hz
Power consumption 200 W
External defibrillator with ECG monitor
Integrated battery charger and transformer
Removable rechargeable battery
Battery autonomy > 100 shocks at 200 J or 3.5 h monitoring
Supplied with adult and paediatric pads/adapters
Non-directional pads, suitable for bi-phasic impulse waveform
Integrated control panel with all parameters and controls
Display, backlit flat panel, 5 – 8 inch diagonal depending
Load compensation, energy level automatic adjustment to the patient impedance
Visualisation of defibrillation mode, energy, ready/charging state, ECG curves and heart rate, date/time
Audio/visual alarms for pads connection, mains/battery power supply status, paper and printer status, system errors
Automatic and manual self-test, continuous check of pads and electrodes connection
Automatic switch to battery in case of power failure, automatic recharge on connection to mains
