Distillation Apparatus Manufacturer,Supplier and Exporter in India
Product Code : SCL-LE-11286

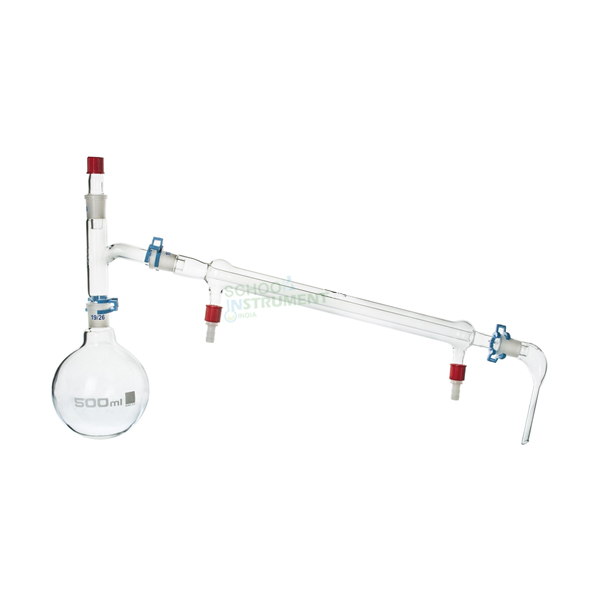

This integrated
distillation assembly is engineered for the thermal separation of liquid
mixtures and solvent recovery within secondary and vocational TVET laboratory
environments. Utilizing precision-ground 24/40 joints and Borosilicate 3.3
glass, the system ensures leak-proof operation under ASTM E438 Type 1
standards. It provides a stabilized hardware platform for demonstrating boiling
point differentials and fractional component isolation.
Technical
Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Borosilicate 3.3
(Low-Expansion, ASTM E438 compliant) |
|
Joint Specification |
24/40 Precision Standard
Taper |
|
Flask Capacities |
500ml Round Bottom (Still
Head Integration); 250ml Erlenmeyer |
|
Condenser Type |
Graham Condenser, 300mm
Jacket Length, 9mm Nozzle OD |
|
Support Hardware |
6" x 9" Cast Base
with 24" Stainless Steel Rod |
|
Clamp Configuration |
Swivel Burette and Extension Clamps with Boss head Holder |
Key Pedagogical
Outcomes
·
Integrated 24/40 Ground Glass
Joints: Enables the assembly of airtight
thermal systems, allowing students to "Apply" physical laws of
thermodynamics without vapor loss or pressure fluctuations.
·
300mm Graham (Coiled) Condenser: Provides high-surface-area heat exchange for efficient
phase transition, facilitating the "Analysis" of condensation rates
and coolant flow efficiency.
·
Side-Tube (Still Head) Round Bottom Flask: Simplifies the distillation path to minimize holdup
volume, supporting "Evaluation" of purification yields and distillate
purity.
·
Swivel and Extension Mounting Hardware: Ensures precise alignment and stabilization of fragile
glass components, permitting students to "Synthesize" complex
apparatus configurations safely.
International
Logistics & Compliance
To ensure transit
integrity across international borders, this apparatus is secured in
export-grade seaworthy crating (ISPM-15 compliant) featuring high-density foam
dunnage for individual glass components. Standard documentation includes the
Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ certification protocols upon
request, and comprehensive technical manuals in English. The system is
tropicalized; all metal support components utilize oxidation-resistant coatings
tested for sustained laboratory operation in environments up to 45°C and 90%
humidity.
