DC Motor Kit Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11689

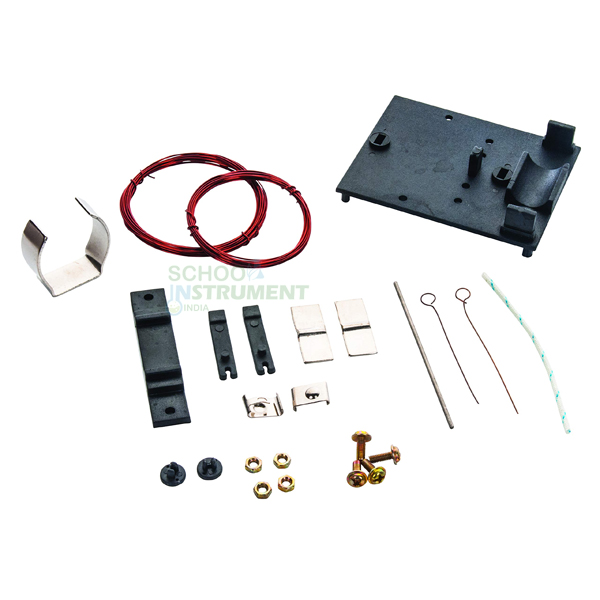

The DC Motor
Construction Kit is a modular instrumentation set engineered for the empirical
study of electromagnetic induction and torque generation. It facilitates the
assembly of a functional commutator motor without requiring permanent magnets,
adhering to ASTM instructional safety standards. Optimized for
University-preparatory and Vocational training, it enables quantitative
analysis of armature-field interactions in high-occupancy laboratory
environment.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
High-Conductivity Copper
Magnet Wire; Impact-Resistant Polymer Base |
|
Dimensions (Assembled) |
3” x 2.5” x 2” (7.6 cm x 6.3
cm x 5 cm) |
|
Power Requirement |
1.5V DC (Single AA Battery
Configuration) |
|
Magnetic Configuration |
Electromagnetic Field
Induction (Non-Permanent Magnet dependent) |
|
Integrated Components |
Armature, Commutator Brushes,
Stator Field Coils, Shaft Assembly |
Key Pedagogical Outcomes
· Field
Coil Electromagnet Configuration: Allows students to "Evaluate" how current flow
generates magnetic flux independently of permanent magnets, supporting
Electromagnetism.
· Exposed
Commutator and Brush Assembly: Facilitates the "Analysis" of polarity switching and
torque continuity, enabling the derivation of motor efficiency constants.
· Manual
Coil Winding Requirement:
Supports the "Application" of Lenz's Law and Faraday's Law through
direct manipulation of wire turns and magnetic field strength.
· Integrated
Activity Guide: Provides structured
procedural frameworks for the "Synthesis" of circuit data,
correlating voltage input to rotational frequency (RPM).
International Logistics & Compliance
This instrumentation
is processed for global tender fulfillment via export-grade seaworthy crating
(ISPM-15 compliant) to protect delicate copper windings and shaft
alignment during multi-modal transit. Every consignment is supplied with a
comprehensive documentation suite, including the Manufacturer’s Authorization
Form (MAF), IQ/OQ/PQ Certification for institutional quality
assurance, and technical assembly manuals in English. The kit features a tropicalized design, utilizing oxidation-resistant
coatings on conductive surfaces tested for operational stability in environments
reaching up to 45°C and 90% non-condensing humidity.
