Compound Bar, Set of 4 Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11603

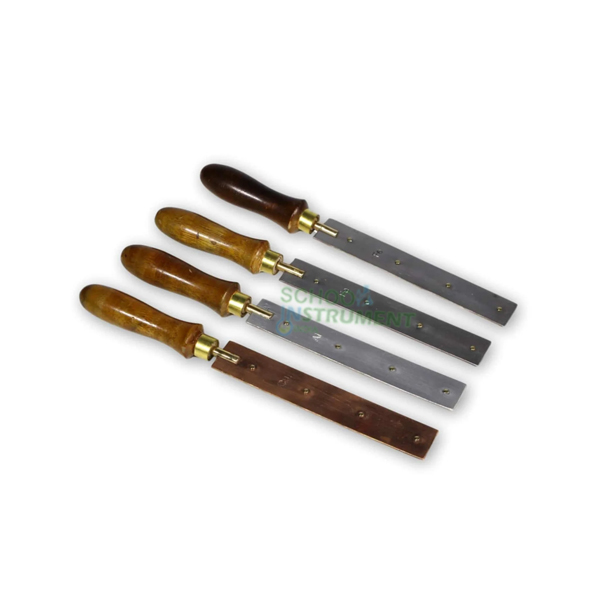

The Compound Bar
Set is a calibrated thermal physics apparatus engineered for the empirical
demonstration of differential linear expansion. Designed for Secondary and
Vocational technical curricula, this set facilitates the quantitative analysis
of bimetallic bending relative to specific coefficients of thermal expansion.
It complies with ASTM laboratory hardware safety standards for thermodynamic
heat-transfer instruction.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Industrial-Grade Aluminum
(Al), Iron (Fe), Copper (Cu), and Brass |
|
Configuration Pairs |
Brass/Aluminum, Brass/Iron,
Copper/Iron, Brass/Copper |
|
Identification |
Permanent Stamped
Metallurgical Codes (Al, Fe, Cu) |
|
Operational Mechanism |
Riveted Differential Linear
Expansion Interface |
Key Pedagogical Outcomes
· Four
Divergent Metallic Combinations: Analyzing Coefficients of Linear Expansion. Enables students to "Analyze" how varying
material properties dictate the degree of curvature under constant thermal
input.
· Riveted
Bimetallic Interface: Evaluating Thermodynamic Stress. Facilitates the "Evaluation" of mechanical
work generated by atomic-level expansion, supporting Mechanics and
Thermodynamics.
· Permanent
Metallurgical Stamping: Applying Data Integrity Standards. Supports the "Application" of controlled
experimental variables by ensuring accurate material identification during
comparative heating trials.
· Differential
Expansion Curve: Understanding Feedback Loop Mechanisms. Allows learners to "Understand" the
fundamental principles behind bimetallic thermostats and thermal switches used
in industrial sensing.
International Logistics & Compliance
To satisfy the requirements of international procurement
officers and global educational tenders, the Compound Bar Set is secured in
export-grade seaworthy crating (ISPM-15 compliant). Documentation provided
includes the Manufacturer’s Authorization Form (MAF), complete IQ/OQ/PQ
Certification, and technical User Manuals in English. The apparatus features a
tropicalized design; metallic interfaces are batch-tested for oxidation
resistance and structural integrity in environments up to 45°C and 90%
non-condensing humidity.
