Burette Clamp, Extention 2 Manufacturer,Supplier and Exporter in India
Product Code : SCL-LE-11698

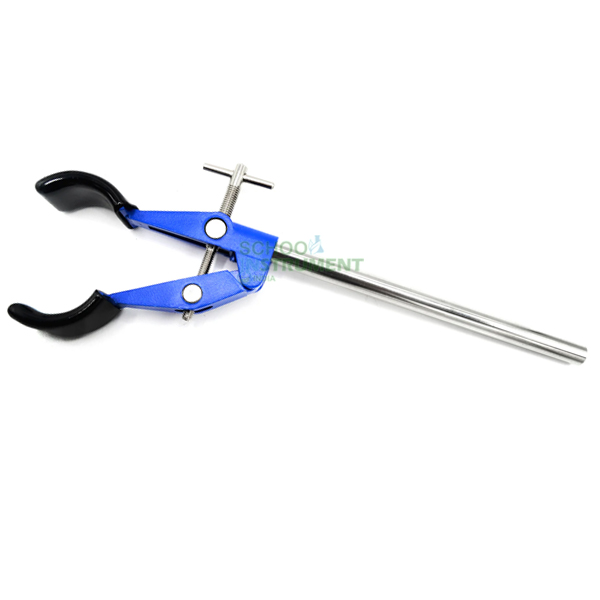

The Extension
Burette Clamp (Variant 2) is a specialized laboratory fastener engineered for
high-clearance mounting of volumetric glassware and condensers. Designed for
University and Vocational (TVET) research modules, it features a 60mm aperture
and a 150mm stainless steel extension arm. This nickel-plated zinc alloy unit
complies with ASTM standards for structural rigidity and chemical-resistant
deployment in corrosive environments.
Technical
Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade (Body) |
High-pressure die-cast zinc
alloy |
|
Finish |
Full-body nickel plating for
enhanced corrosion resistance |
|
Extension Arm |
6-inch (152mm) Grade 304
Stainless Steel pipe |
|
Clamping Geometry |
Double "V" shaped
jaw with cork lining |
|
Adjustment Mechanism |
Fly nut with spring-actuated
positive tension |
|
Aperture Range |
Accepts cylindrical objects
up to 60mm diameter |
Key Pedagogical Outcomes
·
152mm Stainless Steel Extension Arm:
Provides critical lateral offset from
the support stand, allowing students to assemble complex reflux and
distillation columns while maintaining thermal safety buffers.
·
Double "V" Cork-Lined Jaws: Distributes mechanical clamping force evenly across
fragile borosilicate glassware, preventing stress fractures and teaching student’s
proper handling of high-value volumetric instruments.
·
60mm Aperture Capacity:
Extends utility beyond standard burettes
to include large-diameter condensers and Soxhlet extractors, supporting modular
learning in Advanced Chemical Engineering.
International Logistics & Compliance
This hardware is engineered for global institutional
distribution, utilizing export-grade seaworthy crating (ISPM-15 compliant) to
ensure zero-deflection of the extension arm during intermodal transit. Each
consignment is accompanied by a Manufacturer’s Authorization Form (MAF),
IQ/OQ/PQ Certification, and technical manuals in English. The instrument
features a tropicalized design, tested for high-cycle spring durability and
electrolytic finish stability in environments reaching 45°C and 90% humidity.
