Adaptor for Compression Fittings Manufacturer,Supplier and Exporter in India
Product Code : EL-WS-10487
Written by Palak Mall, Senior Content Writer · reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory supply · updated 17 October 2026

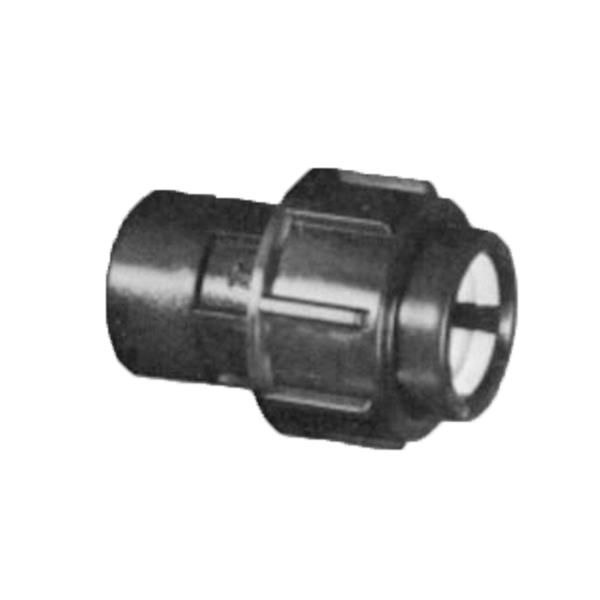

The Adaptor for Compression Fittings is a straight transition with a compression end for 110 mm HDPE pipe and an external male thread at 4 inch nominal, for connecting HDPE pipe into galvanized iron pipe sockets. Its reinforced, high impact strength polypropylene is UV stabilised and rated at 10 bar at 20°C; Water and Sanitation carries it as the HDPE-to-GI transition.
What is specified
| Detail | Figure listed |
|---|---|
| Type | Straight adaptor |
| Ends | Compression x external male thread |
| Connects | HDPE pipe to GI pipe sockets |
| Size | 110 mm outside diameter x 4 inch nominal |
| Material | Reinforced, high impact strength polypropylene, UV stabilised |
| Pressure | 10 bar at 20°C |
| Temperature | 0 to 50°C |
Moving from plastic to metal
Water networks often combine HDPE on buried runs with galvanized iron at valves and exposed sections. This adaptor is the joint between them: the HDPE side is made up by compression and the threaded side screws into a 4 inch GI socket. On uPVC lines, the Tee Adaptor Female Ends makes a threaded GI connection instead.
Questions buyers ask
Which side is threaded?
The GI side, with an external male thread to go into a 4 inch galvanized iron socket.
Is it UV stabilised?
Yes, the polypropylene is UV stabilised.
Request a quotation
Send quantities, with the pipe material on each side, through the contact page.
