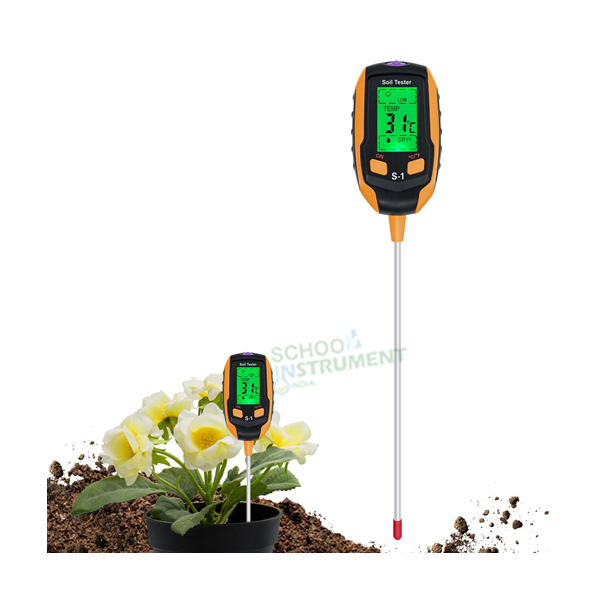

4 in 1 Soil Meter Manufacturer,Supplier and Exporter in India
Product Code : SCL-LE-11258
This
multi-parametric soil analyzer is engineered for high-fidelity monitoring of
pH, moisture, temperature, and luminous flux. Designed for University and
Vocational Agricultural programs, the instrument ensures precise root-zone data
acquisition using an 8-inch (200mm) high-conductivity probe. Compliant with
ASTM D4972 (pH) and D2216 (Moisture) testing frameworks, it provides critical evidentiary
data for crop science and horticultural modules.
Technical
Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Impact-resistant ABS chassis;
Corrosion-resistant probe |
|
Probe Dimensions |
200 mm (8") length for
root-deep penetration |
|
pH Range/Resolution |
3.5 – 9.0 pH / 0.5 resolution |
|
Temperature Range |
-9°C to +50°C (16°F to 122°F) |
|
Moisture Sensing |
5-level scale (Dry+ to Wet+) |
|
Sunlight Analysis |
9-level scale (500 Lux to
>120,000 Lux) |
|
Power Architecture |
9V DC battery (Working
Current <30mA) |
|
Operating Environment |
+5°C to +40°C; 5% – 95% RH
non-condensing |
Key Pedagogical Outcomes
·
Integrated 8-Inch Root-Zone
Probe: Enables students to capture
sub-surface geochemical data, supporting Plant Physiology Module Nutrient
Absorption.
·
Luminous Flux Measurement: Facilitates the analysis of light saturation points and
their correlation to photosynthesis rates, satisfying Bloom’s Analysis of
environmental stressors.
·
Volumetric Moisture Feedback: Allows for the empirical determination of wilting points
and field capacity in variable soil textures (Sand, Silt, Clay).
·
Digital pH Resolution of 0.5: Supports the evaluation of soil amendments and
lime-requirement calculations in Geology and Soil Chemistry practicals.
·
Large Format LCD with Low-Power
Indicator: Ensures data integrity and
systematic recording during longitudinal field observation studies.
International
Logistics & Compliance
This instrument is
prepared for global procurement via export-grade seaworthy crating (ISPM-15
compliant) to protect calibrated sensors during transit. Every shipment
includes a Manufacturer’s Authorization Form (MAF), Technical Data Sheets, and
IQ/OQ/PQ certification protocols. The ruggedized design is tropicalized, tested
for operational durability in high-humidity environments up to 45°C/90% RH,
ensuring that the internal circuitry and LCD remain operational under extreme
field conditions.
